Description

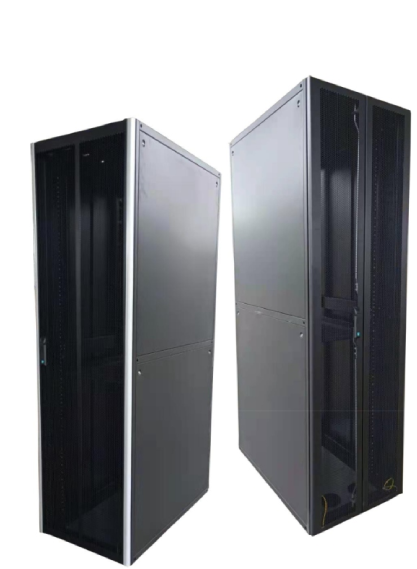

Communication Racks & Equipment Mounting Enclosures
Medium and high-density IT rack including server rack and network rack.
Server rack is a dedicated rack for installing 19″ standard equipment and non-19 ”
standard equipment such as server, display, UPS, etc. The network rack is a
dedicated rack for installing switches, routers and other network equipment.

Highlights
Compatibility
Capable of being used in conjunction with high-capacity cable management systems, which are attached to the equipment mounting rails inside the rack and aligned with the u-space of the mounting equipment and provide access to cable routing and cable management. Two PDU can be installed vertically on one side (800mm) with a spline loop for managing power distribution wires.

Safety
Load bearing: The static load capacity of 42U rack is 1500Kg, the wheels at the bottom of the rack can be connected with the support in different ways after unloading to meet different seismic requirements. Anti-seismic: Meeting the standards of the telecommunications industry 【 telecommunications equipment seismic performance testing specifications 】 (YD5083-2005), which Load ≥ 450KG seismic requirements of 8 intensity.

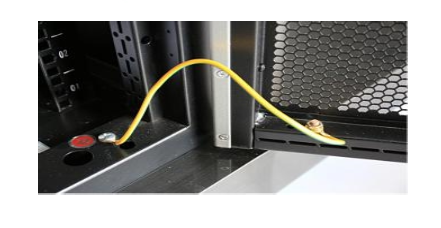

Grounding: At least two grounding points are provided at the bottom of the rack. The door and rack enclosure are connected by soft wire butt terminals, with a section not less than 4mm.

Useful
The huge cable access slot at the top provides access channel. The bottom design allows cables to pass through the movable floor without barrier. The inlet line on both sides of the top is treated with a brush to facilitate removal for cleaning and replacement while allowing the cable to pass through and play a role in airflow containment. There are eye bolt holes on the top of the rack frame, allowing the lifting mechanism and lifting eye bolts to lift the rack for movement and placement.

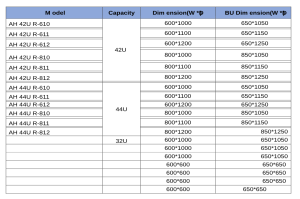

Specifications
